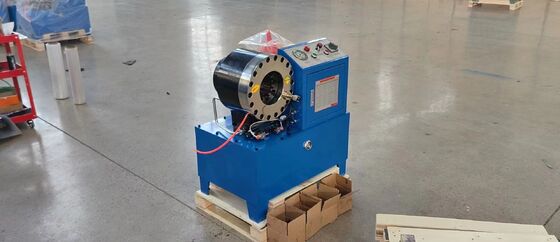

DX68 Electric 220v/380v 2 Inch Hydraulic Hose Crimper With 6-51mm Crimping Accuracy ±0.01mm 10 Dies And 200 Pcs Per Hour Efficiency

DX68 Electric 2 Inch Hydraulic Hose Crimper — 220V/380V, ±0.01mm Accuracy, 6–51mm, 10 Dies, 200 pcs/hr
Product Overview
The DX68 Electric Hydraulic Hose Crimper is a precision production machine engineered for hydraulic workshops, car repair shops and oil-service providers across the USA, Europe and Southeast Asia. Designed to crimp hoses from 6 mm to 51 mm (up to 2 inches) with repeatable accuracy of ±0.01 mm, the DX68 combines electric-hydraulic power, a robust build and user-friendly controls to deliver up to 200 completed assemblies per hour. Supplied with 10 interchangeable dies, this crimper is ideal for high-quality, high-throughput hose assembly and repair.
Key Features
• High Precision: Crimping accuracy of ±0.01 mm ensures uniform crimps and reduced rejection rates for critical hydraulic applications.
• Wide Crimping Range: Covers hose sizes from 6 mm to 51 mm (up to 2 inches) to suit diverse hydraulic and industrial hoses.
• 10 Interchangeable Dies: Standard die set enables quick changeovers between common hose sizes and fittings.
• Dual Voltage Options: Available in 220V or 380V to match local electrical supplies in the USA, Europe and Southeast Asia.
• Electric-Hydraulic Drive: Stable, powerful crimping force with smooth cycles for consistent quality and longer tool life.
• High Throughput: Engineered workflow and optimized cycle times deliver up to 200 pcs per hour under standard operating conditions.
• Intuitive Controls: Digital display and straightforward control panel reduce setup time and make stored presets easy to use.
• Durable Construction: Heavy-duty frame, precision tooling and protective finishes designed for long service life in demanding environments.
Advantages
• Consistent Quality: ±0.01 mm accuracy and precise hydraulic control reduce leakage risk and rework, improving customer satisfaction.
• Increased Productivity: Fast cycle times and quick die changes help shops meet higher order volumes and shorten lead times.
• Lower Operating Costs: Robust design and reliable electric-hydraulic system reduce downtime and maintenance expenses.
• Versatile Application: Suitable for hydraulic, automotive and oil-industry hose assemblies in both repair and light production environments.
• Global Compatibility: Voltage options and standardized die sets make the DX68 easy to deploy for international customers.
Technical Specifications
• Model: DX68 Electric Hydraulic Hose Crimper (2 Inch)
• Crimping Range: 6 mm – 51 mm (up to 2.0 in)
• Crimping Accuracy: ±0.01 mm
• Dies Included: 10 interchangeable dies (standard set)
• Throughput: Up to 200 pcs/hour (dependent on hose/fitting complexity and operator)
• Power Supply: 220V / 380V (specify at order)
• Drive: Electric-hydraulic system
• Motor Power: Typically 3 kW (model dependent)
• Control: Digital display with stored presets and manual/automatic cycle modes
• Approx. Weight: 260 kg (model dependent)
• Dimensions (approx.): 730 × 475 × 780 mm
Frequently Asked Questions (FAQ)
Q1: What maximum hose size can the DX68 crimp?
A1: The DX68 crimps hoses up to 51 mm (2 inches) in outer diameter.
Q2: How accurate are the crimp settings?
A2: The machine provides crimping accuracy of ±0.01 mm for consistent, repeatable results.
Q3: Is the 200 pcs/hour rating guaranteed?
A3: The 200 pcs/hour figure is a typical production benchmark under ideal conditions (simple assemblies, experienced operator). Actual throughput depends on hose type, fittings, and workflow.
Q4: Which voltage should I order — 220V or 380V?
A4: Select the voltage that matches your facility’s supply. The DX68 is available in both 220V and 380V configurations; specify at order to ensure compatibility.
Q5: Can I purchase additional or custom dies?
A5: Yes. Additional and custom die sets for special fittings or non-standard hoses are available—contact the supplier with your fitting specifications.
SEO Keywords (for usage): Hydraulic Hose Crimper, DX68 Hose Crimper, 2 Inch Hose Crimper, high-accuracy hose crimper, electric-hydraulic hose crimper.
Conclusion
The DX68 Electric 2 Inch Hydraulic Hose Crimper delivers precision, reliability and throughput for professional hose assembly environments. With ±0.01 mm accuracy, 10 dies and dual-voltage options, it is a strong choice for customers in the USA, Europe and Southeast Asia seeking consistent, high-quality hydraulic hose crimps. Contact your local distributor to configure voltage, die sets and installation.

The DX68 2 Inch Hydraulic Hose Crimping Machine combines efficiency, power, and design innovation. With its significant crimping force, high output capacity, and versatile functionality, this machine is perfect for a wide range of industrial applications.
