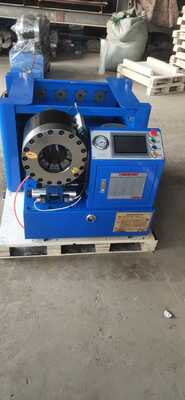

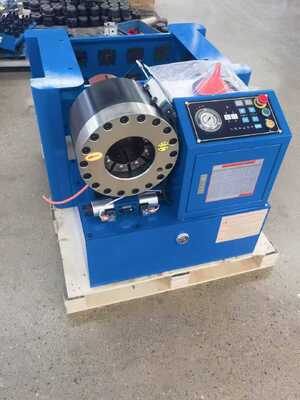

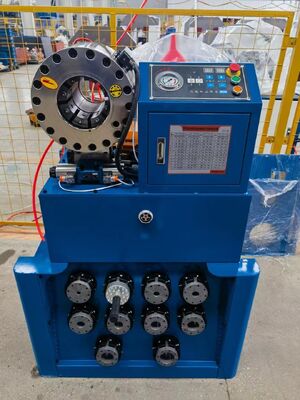

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Marchio:	FY
Numero di modello:	FY-P38
MOQ:	1 set
prezzo:	USD$ 1850/1800/1750/1700
Condizioni di pagamento:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Capacità di approvvigionamento:	300 set al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

La Cina, Shanghai

Certificazione:

Voltaggio:

220V/240V/380V/415V ((facoltativo)

peso lordo:

300 kg

Peso netto:

275 kg

Potenza (w):

3KW/4KW

Dimensione (L*W*H):

950*630*700 millimetro

Dimensione del pacchetto:

1000*680*750 millimetro

Garanzia:

1 anno

Condizione:

nuovo

Servizio post-vendita fornito:

Supporto tecnico video, supporto online

Forza di crimpatura:

300Ton/0,3MT

Nome del prodotto:

Macchina per crimpare tubi idraulici da 2 pollici con strumento di stampo a cambio rapido e 10 stamp

Gamma di crimpatura:

6-38mm/1,5 pollici/2 pollici

colore:

Blu, blu o personalizzato

Applicazione:

Crimpaiolo

Stampi gratuiti:

10 set

Pressione del sistema:

26MPa/31.5MPa/260 bar/315 bar

Volume di uscita della pompa:

2.5L/5L

Evidenziare:

Macchina di piegatura del tubo idraulico avanzato, macchina di piegatura del tubo idraulico di contr

Imballaggi particolari:

scatola di legno

Capacità di alimentazione:

300 set al mese

Evidenziare:

2.5 Inch Crimping Size Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

Descrizione del prodotto

2.5 Inch Hydraulic Hose Crimping Machine

The 2.5 Inch Hydraulic Hose Crimping Machine is a highly efficient and advanced tool designed for precise crimping of hydraulic hoses. Incorporating a fast change mould tool and featuring 10 interchangeable dies, this machine is engineered to provide versatility across various applications. With a robust PLC control system, it guarantees consistent performance, making it an essential asset for professionals in automotive, construction, and industrial sectors.

Key Features

Large Crimping Capacity: Capable of crimping hoses up to 2.5 inches, perfect for applications requiring robust performance and flexibility
Fast Change Mould Tool: Innovative design allows for swift transitions between different dies, reducing downtime
Comprehensive Die Set: 10 interchangeable dies included for accommodating various hose sizes
Advanced PLC Control System: Programmable Logic Controller ensures precise control and consistent results
Sturdy Rack System: Provides excellent support during operation, ensuring stability and precision

Operational Advantages

Enhanced Efficiency: Fast change mould tool and versatile die set significantly improve productivity
Broad Application Range: Suitable for automotive, construction, and various industrial hydraulic systems
User-Friendly Operation: Intuitive design and PLC control ensure easy use for operators of all experience levels
Cost-Effective Solution: Consolidates multiple functionalities into one machine, reducing equipment costs
Safety and Reliability: Built-in safety features protect both user and equipment during operations

Technical Specifications

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	8 sets
