2 Inch 600T Crimping Force Rubber Hose Crimping Machine With 6-51mm Range And 10 Interchangeable Dies

2 Inch 600T Crimping Force Rubber Hose Crimping Machine With 6-51mm Range And 10 Interchangeable Dies

Marchio:	FanYing
Numero di modello:	FY-51QY
MOQ:	1 set
prezzo:	negotiable
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di approvvigionamento:	10000 set al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

La Cina, Shanghai

Peso:

310 kg

Pressione del sistema:

31.5MPA

Materiale:

Gomma

Nome:

Macchina di piegatura del tubo di gomma

Garanzia:

1 anno

Forza di crimpatura:

Tipo:

macchina di piegatura

Nome del prodotto:

Macchina per piegare il tubo di gomma della forza di piegatura da 2 pollici 600T con gamma di 6-51mm

Imballaggi particolari:

Scatola di legno standard

Capacità di alimentazione:

10000 set al mese

Evidenziare:

600T Crimping Force Rubber Hose Crimping Machine

6-51mm Crimping Range Hydraulic Hose Crimper

10 Interchangeable Dies Hose Crimping Equipment

Descrizione del prodotto

2 Inch 600T Rubber Hose Crimping Machine

The 2 Inch 600T Rubber Hose Crimping Machine delivers precision and power for demanding hydraulic applications. Engineered with a robust 600-ton crimping force and adjustable 6-51mm range, this advanced machine includes 10 interchangeable dies and features a sophisticated PLC control system for optimal performance.

Key Features

Power600T Crimping Force - Handles tough rubber hoses for secure, reliable crimping in high-pressure applications
Range6-51mm Crimping Range - Versatile compatibility for various hydraulic applications across multiple industries
ControlPLC Control System - Programmable logic controller ensures precise operations and consistent performance
Flexibility10 Interchangeable Dies - Quick-change capability minimizes downtime between different hose sizes
DurabilityRobust Construction - High-quality materials withstand rigorous workshop conditions

Performance Advantages

Enhanced Efficiency - High crimping force and versatile range enable fast processing of hydraulic hoses
User-Friendly Operation - Intuitive interface with PLC control simplifies use for all skill levels
Versatile Applications - Suitable for automotive, construction, manufacturing, and industrial sectors
Cost-Effective Investment - Eliminates need for multiple crimping tools with comprehensive functionality
Safety & Reliability - Engineered safety features protect operators while ensuring high-quality output

Technical Specifications

Specification	Value
Crimping Range	6-51 mm
Crimping Force	600 T
Quantity of Dies	10 sets
Accuracy	0.01 mm
System Pressure	31.5 MPa
Motor Power	3 kW
Voltage Options	220V/240V/380V/415V
Work Efficiency	200 pcs/h
Maximum Open Diameter	114 mm
Machine Dimensions	860 * 640 * 1300 mm
Net Weight	310 kg
Warranty	1 Year

Industrial Applications

The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine serves multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.

Product Customization & Support

Manufactured in Shanghai, China with comprehensive 1-year warranty. Features include 600T crimping force, 6-51mm crimping range, and compact dimensions of 860*640*1300 mm. Complete technical support available 24/7 with trained technicians providing onsite installation, training, maintenance, and repair services.

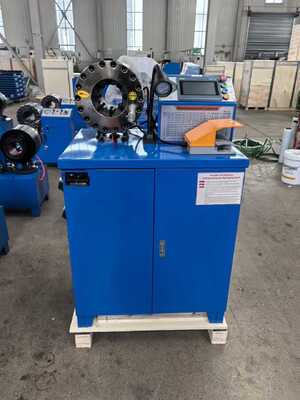

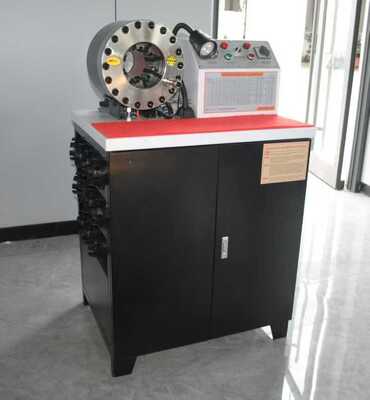

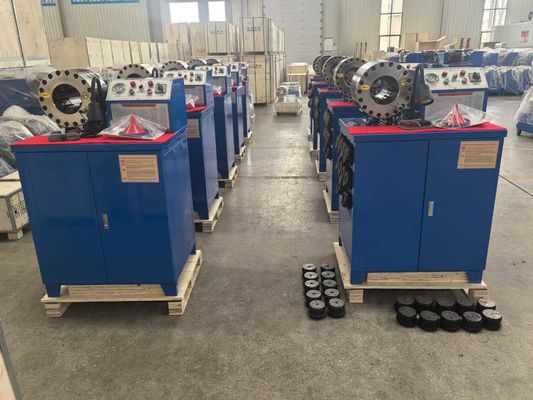

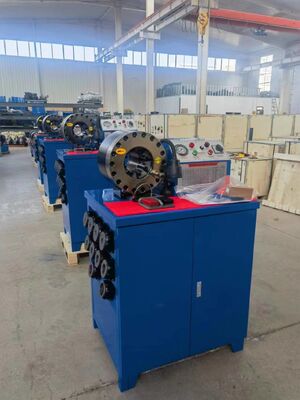

Product Gallery
