600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies

600T Crimping Force Rubber Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies

Marchio:	FanYing
Numero di modello:	FY-51QY
MOQ:	1 set
prezzo:	negotiable
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di approvvigionamento:	10000 set al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

La Cina, Shanghai

Peso:

310 kg

Pressione del sistema:

31.5MPA

Materiale:

Gomma

Nome:

Macchina di piegatura del tubo di gomma

Garanzia:

1 anno

Forza di crimpatura:

Tipo:

macchina di piegatura

Nome del prodotto:

Macchina per piegare il tubo di gomma da 2 pollici 600T 6-51mm 220V-415V con 10 stampi di colore ner

Imballaggi particolari:

Scatola di legno standard

Capacità di alimentazione:

10000 set al mese

Evidenziare:

600T Crimping Force Rubber Hose Crimping Machine

6-51mm Crimping Range Hydraulic Hose Crimper

10 Interchangeable Dies Hose Crimping Equipment

Descrizione del prodotto

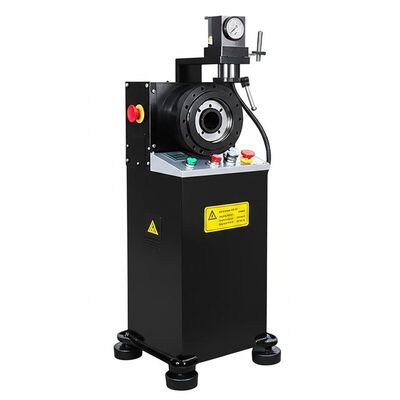

2 Inch 600T Rubber Hose Crimping Machine

Professional-grade crimping machine designed for high-performance rubber hose applications with versatile voltage compatibility and fast-change tooling system.

Key Features

600T Crimping Force: Powerful performance for secure crimping in high-pressure applications
Wide Crimping Range: Accommodates hoses from 6mm to 51mm diameter
Multiple Voltage Options: Compatible with 220V, 240V, 380V, and 415V power systems
10 Interchangeable Dies: Comprehensive die set with fast-change mould tools for minimal downtime
Robust Construction: Durable black finish designed for rugged workshop environments

Performance Advantages

Enhanced productivity with 200 pieces per hour work efficiency
Consistent and secure crimping for maintaining hydraulic connection integrity
User-friendly operation suitable for operators of all experience levels
Cost-effective solution reducing the need for multiple crimping tools
Built-in safety features for secure operations

Technical Specifications

Crimping Range	6-51 mm
Crimping Force	600 T
Quantity of Dies	10 sets
Accuracy	0.01 mm
System Pressure	31.5 MPa
Motor Power	3 kW
Voltage Options	220V/240V/380V/415V
Work Efficiency	200 pcs/h
Maximum Open Diameter	114 mm
Machine Dimensions	860 * 640 * 1300 mm
Net Weight	310 kg
Warranty	1 Year

Industrial Applications

The FanYing FY-51QY Electric Hydraulic Rubber Hose Crimping Machine is widely used across multiple industrial sectors including automotive, construction, machinery, mining, aviation, railway, chemical, and oil & gas industries. Ideal for crimping hydraulic and pneumatic rubber hoses, fuel hoses, oil pipes, and various industrial rubber hose applications.

Product Customization

Manufactured in China, Shanghai with 1-year warranty. Features include 600T crimping force, 6-51mm crimping range, and compact dimensions of 860*640*1300 mm.

Technical Support & Service

Comprehensive technical support available 24/7 with trained technicians. Services include onsite installation, training, regular maintenance, and repair to ensure optimal machine performance.
